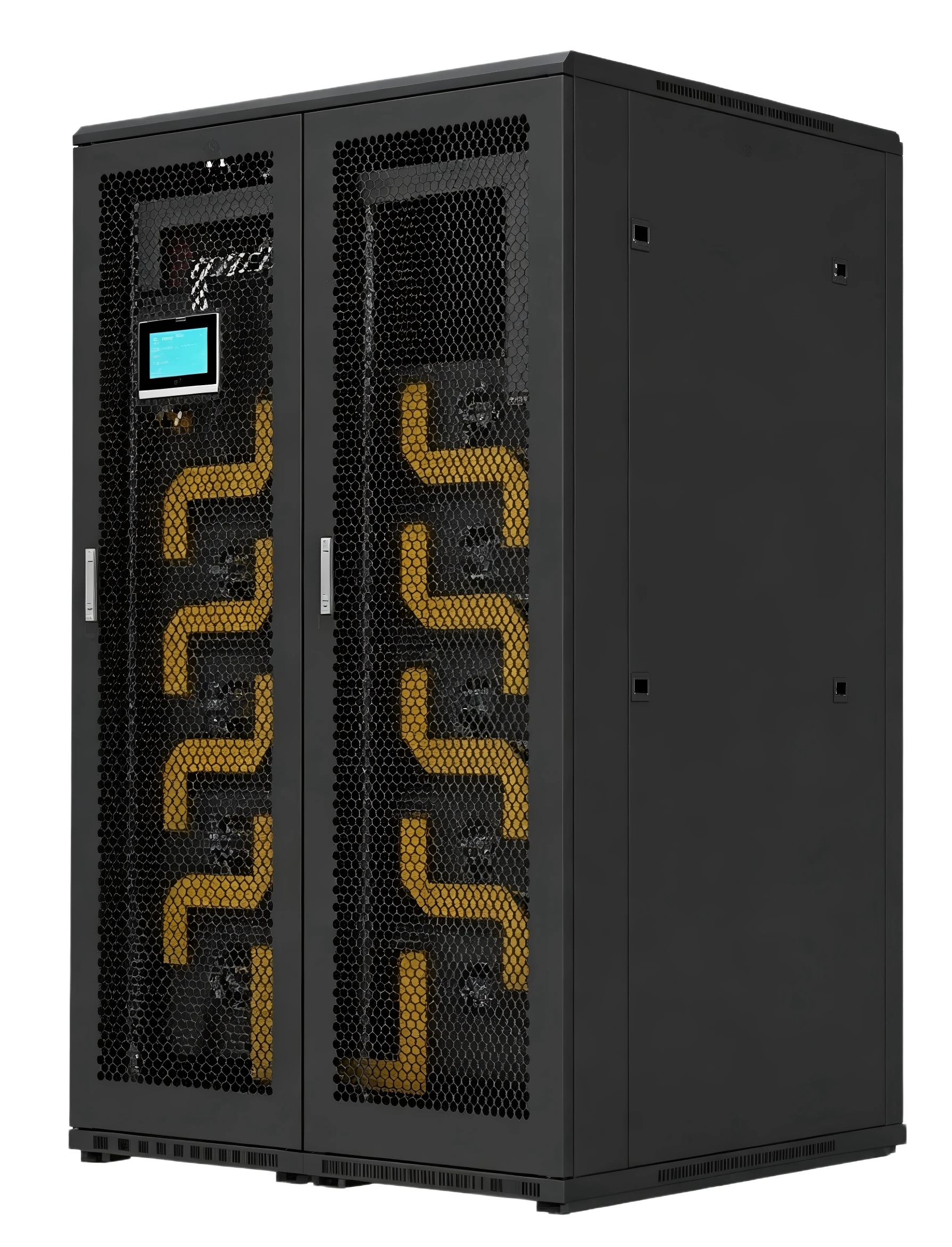

522V100Ah Sodium Ion Battery:
The Future of Data Center UPS
Excellent Low Temperature Performance & High Discharging Rate. The Ultimate Backup Power for Critical Data Infrastructure.
Extreme Cold Resilience
Operates flawlessly in extreme cold (-40°C to 60°C) without complex heating systems, reducing energy overhead.
High-Rate Discharge
Instantaneous power response for seamless UPS switchover in high-density data center environments.
Inherent Safety
Sodium-ion chemistry eliminates thermal runaway risks with superior thermal stability and puncture resistance.
TCO Optimization
Abundant resources and eco-friendly chemistry provide a cost-effective alternative to lithium-based systems.
Uncompromised Capacity in Extreme Cold
Traditional lithium-ion batteries struggle at sub-zero temperatures, losing up to 50% of their effectiveness. Our Sodium-Ion technology retains over 80% capacity at -40°C, ensuring your data center stays powered even in the harshest environments without parasitic heating costs.
Technical Specifications
| Parameter | Specifications | Notes |
|---|---|---|
| Nominal Voltage | 522V DC | Optimized for high-voltage UPS systems |
| Rated Capacity | 100Ah (C3) | High energy density module |
| Chemistry | Sodium-Ion (Na-Ion) | Eco-friendly & abundant resources |
| Operating Temp | -40°C to +60°C | Extreme environment certified |
| Discharge Rate | 3C Continuous / 5C Peak | High-rate optimized for sudden loads |
| Cycle Life | ≥ 4,500 Cycles | At 25°C, 80% DOD |
Mission Critical Applications
The versatility of sodium-ion technology allows for deployment in sectors where lithium underperforms.
Data Center UPS
Reliable backup power for high-density compute environments.
Edge Computing
Decentralized storage nodes in extreme northern/southern cold zones.
C&I Energy Storage
Commercial and industrial peak-shaving with uncompromised safety.
Ready to Modernize Your UPS?
Connect with our engineering team to receive a custom solution proposal and ROI analysis for your specific infrastructure needs.
